DLP, 1920x1080, 3000ANSI Lumen, 10000:1, 296x120x224mm, 2,7kg
A termék jelenleg nem rendelhető!
Main Specifications
Native Resolution
1080p (1920x1080)
Brightness (ANSI lumens)
3000lm
Contrast Ratio (FOFO)
10000:1
Speaker
5W x 1
All Specifications
Display
Projection System
DLP
Native Resolution
1080p (1920x1080)
Resolution Support
VGA(640 x 480) to WUXGA_RB (1920 x 1200) *RB = Reduced Blanking
Brightness (ANSI lumens)
3000lm
Contrast Ratio (FOFO)
10000:1
Display Color
1.07 billion colors
Native Aspect Ratio
16:9
Light Source
Lamp
Light Source Wattage
240W
Light Source Life
Normal 4000 hours
Economic 10000 hours
SmartEco 10000 hours
Lampsave 15000 hours
Optical
Throw Ratio
0.69~0.83 (100"@1.5m)
Zoom Ratio
1.2x
Lens
F/# = 2.6 - 2.78, f = 10.2 - 12.24 mm
Keystone Adjustment
1D, Vertical +/- 40 degrees
Projection Offset
102.5%±2.5%
Clear Image Size (Diagonal)
60"~120"
Image Size
30~ 300"
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz
Picture Mode
Bright/ Vivid TV/ Cinema/ Sport/ Game/ User 1/ User 2/ (3D)
Color Wheel Segment
RGBYCM
Color Wheel Speed
2X(50Hz, 60Hz)
Rec.709 Coverage
>92%
Audio
Speaker
5W x 1

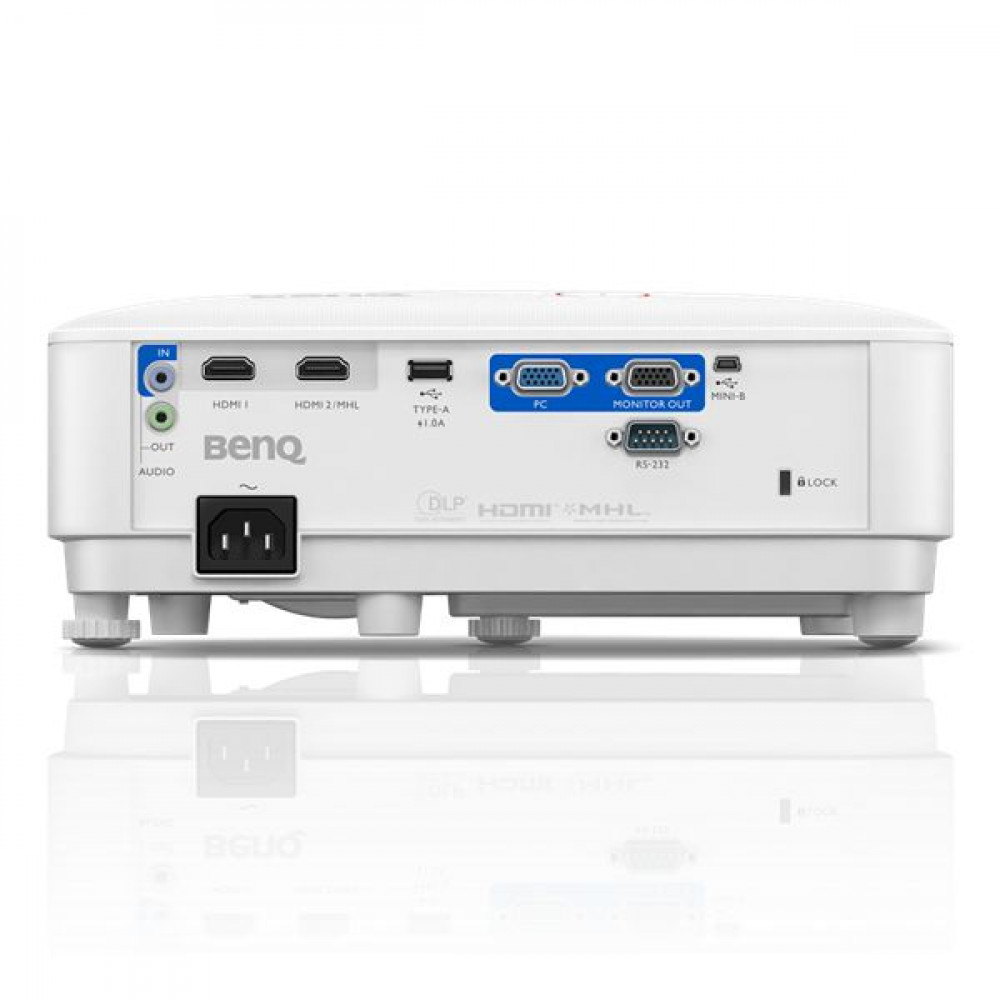

Interface
PC (D-Sub)
1
Monitor Out (D-Sub)
1
HDMI
2
HDMI-1 (1.4a)
HDMI-2 (1.4a/MHL/HDCP1.4)
USB Type A
1
USB-1 (2.0/ Power Suppy)
USB Type mini B
1 (Service)
Audio in (3.5mm Mini Jack)
1
Audio out (3.5mm Mini Jack)
1
RS232 (DB-9pin)
1
IR Receiver
2 (Front & Top)
Security Bar
1
Special Feature
LumiExpert
Yes
Compatibility
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility
NTSC, PAL, SECAM
3D Compatibility
Frame Sequential: Up to 720p 60hHz
Frame Packing: Up to1080p 24Hz
Side by Side: Up to 1080i/p 24Hz
Top Bottom: Up to 1080p 60Hz
Environment
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption
320W
Standby Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)
33/29 Dba
Operating Temperature
0~40℃
Dimension and Weight
Dimensions (W x H x D)(mm)
296 x 120 x 224 mm
Net Weight (Kg/ lbs)
2.7 (5.95)
Accessories (Standard)
Carton
Yes, Brown Carton
Remote Control w/ Battery
Yes (RCV013)
Power Cord (by region)
x1 (1.8m)
User Manual CD
x1 (27L)
Quick Start Guide
x1 (18L)
Warranty Card (by region)
Yes
VGA(D-sub 15pin) Cable
x1 (1.5m)
Lens cover
Yes
Battery
AAA x2
Accessories (Optional)
Carry Bag
Yes (5J.J3T09.001)
Spare Lamp Kit
Yes
3D Glasses
Yes
QCast HDMI dongle
Yes
QCast Mirror dongle
Yes
Wireless FHD Kit
Yes, WDP02
Wireless USB Dongle
Yes
| Fizikai méret: 296x120x224mm | Tömeg: 2,7 kg |
| Kijelző technológia: DLP | Felbontás: 1920x1080 |
| Fényerő: 3000 ANSI Lumen | Kontrasztarány: 10000:1 |
